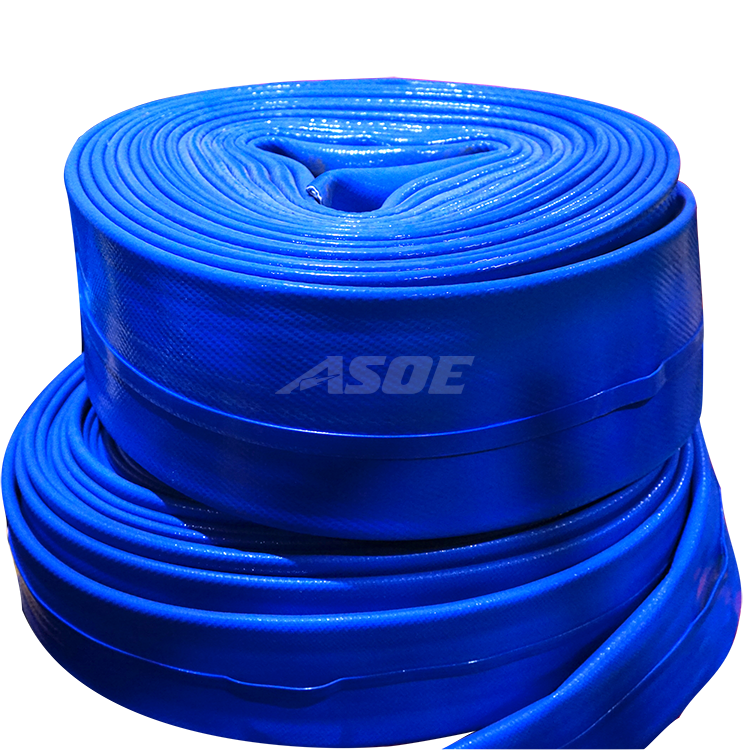

Welline™ TPU Lay Flat Hose

Welline™ TPU Lay Flat Hose

Short Description:
Welline™ TPU hose is a durable, high-performance solution for deep well ground water extraction. With superior pressure tolerance, tensile strength, and corrosion resistance, it outperforms plastic and steel pipes. Its lightweight, flexible design ensures easy handling, while its smooth inner surface prevents scaling, making it ideal for demanding environments.
Basic Information
Structure
Data Sheet
  • Basic Information

  • Size: 1-1/4"-12"
    Standard Color: (Other colors available)

Length: Up to 400m, customized lengths available
Application: Groundwater extraction
Advantages: Corrosion-resistant, highly wear-resistant, lightweight and portable, high tensile strength

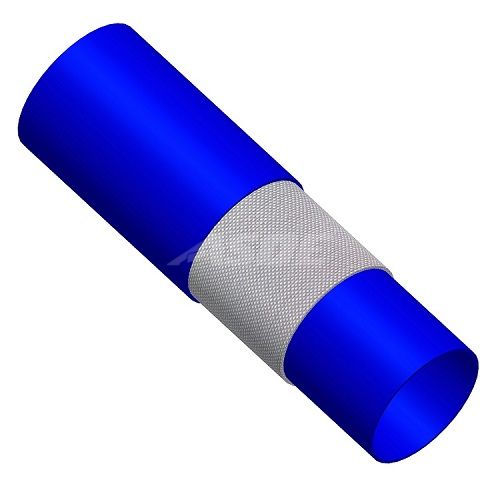

  • Structure
  • Inner Tube: TPU
  • Outer Cover: TPU
  • Reinforcement: Circular-woven polyester jacket
  • Operating Temperature Range:  -60°F to 176°F (-50°C to 80°C)

  • Data Sheet

Part#

ID

Thickness

Weight

Working pressure

Bursting pressure

Tensile Strength



Inch

mm

mm

kg/m

PSI/bar

PSI/bar

KG

WLPU125

1-1/4"

32+1.5

2.5

0.42

580/40

1450/100

3700

WLPU150

1-1/2"

39+1.5

2.5

0.45

425/30

 920/65

5800

WLPU200

2"

51+1.5

3.0

0.70

425/30

 920/65

5800

WLPU250

2-1/2"

64.5+2.0

3.2

0.79

425/30

 920/65

9600

WLPU300

3"

76+2.0

3.2

1.07

390/27

870/60

9800

WLPU400

4"

104+2.0

3.5

1.45

380/26

870/60

18200

WLPU500

5"

128+2.0

4.6

2.25

360/25

870/60

27400

WLPU600

6"

155+2.0

4.6

2.52

360/25

870/60

34400

WLPU800

8"

205+3.0

4.6

3.60

290/20

700/48

45800

WLPU1000

10"

254+3.0

5.0

4.85

260/18

600/42

60900
