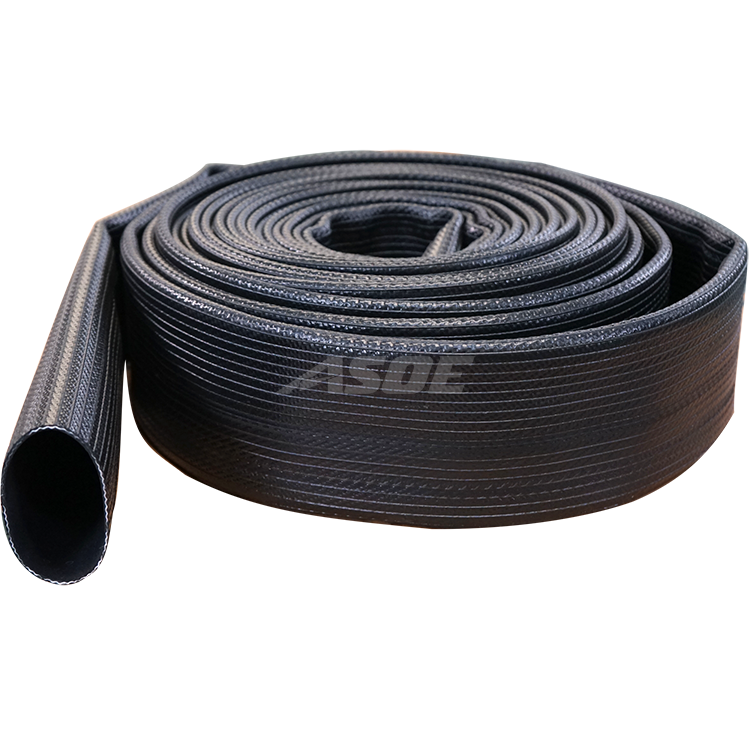

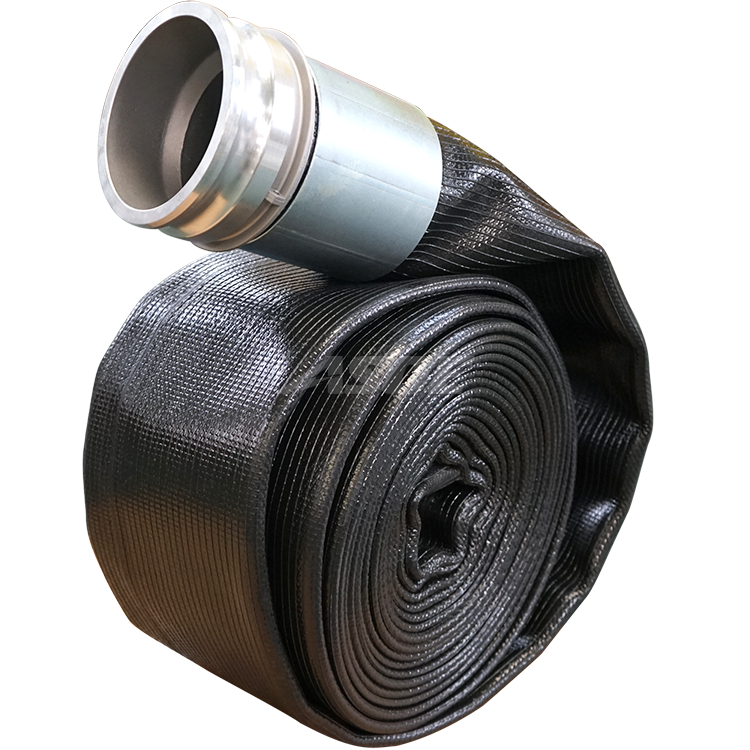

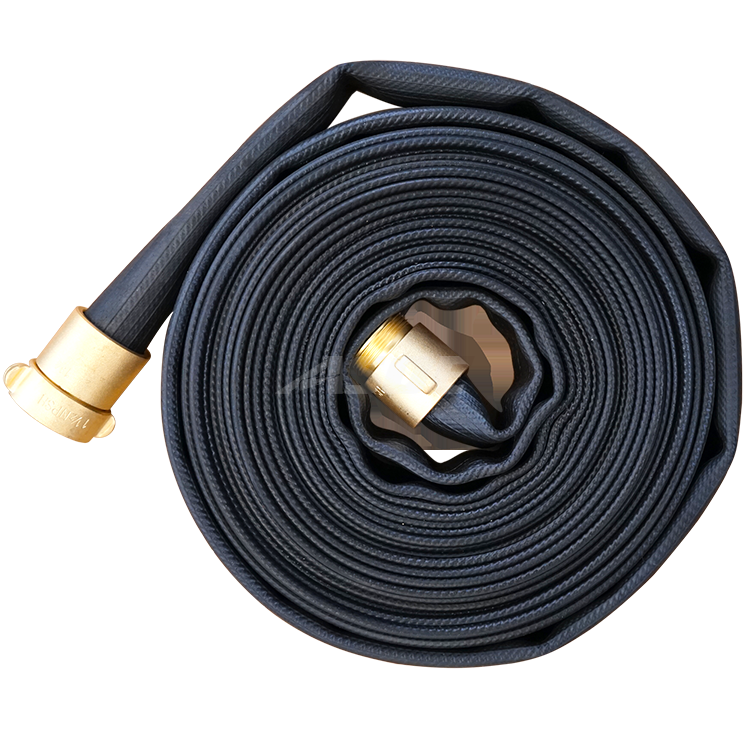

Longman™ NBR Lay Flat Hose

Short Description:

Longman™ NBR Lay Flat Hose is a durable, high-performance hose designed for fluid transfer in agriculture, firefighting, and industrial applications. Made from nitrile rubber (NBR) and reinforced with a high-strength polyester jacket, it offers excellent resistance to oil, abrasion, and weather. Its lay-flat design ensures easy handling, storage, and transportation.

CONTACT NOW

Basic Information

Structure

Data Sheet

Basic Information
Size: 1"-12"
Standard Color: （Other colors available）

Length: Up to 200m, customized lengths available
Application: Dewatering
Advantages: High pressure, Corrosion-resistant, highly wear-resistant, lightweight and portable, high tensile strength

Structure
Inner Tube: NBR
Outer Cover: NBR with Rib
Reinforcement: Circular-woven polyester jacket
Operating Temperature Range: -4°F to 176°F (-20°C to 80°C)

Data Sheet

Part#	ID		Thickness	Weight	Working pressure	Bursting pressure	Tensile Strength
	Inch	mm	mm	kg/m	PSI/bar	PSI/bar	KG
LM450NBR150	1-1/2"	39+1.5	2.0	0.32	150/10	450/30	3500
LM450NBR200	2"	51+1.5	2.1	0.45	150/10	450/30	4900
LM450NBR250	2-1/2"	64.5+2.0	2.2	0.65	150/10	450/30	7200
LM450NBR300	3"	76+2.0	2.0	0.61	150/10	450/30	8000
LM450NBR400	4"	104+2.0	2.5	1.05	150/10	450/30	12800
LM450NBR500	5"	125+2.0	3.0	1.50	150/10	450/30	18000
LM450NBR600	6"	155+2.0	3.0	2.15	150/10	450/30	22200
LM450NBR800	8"	205+3.0	3.5	2.80	150/10	450/30	35800
LM450NBR1000	10"	255+3.0	4.3	4.20	150/10	450/30	53700
LM450NBR1200	12"	305+3.0	4.5	5.40	150/10	450/30	66100
