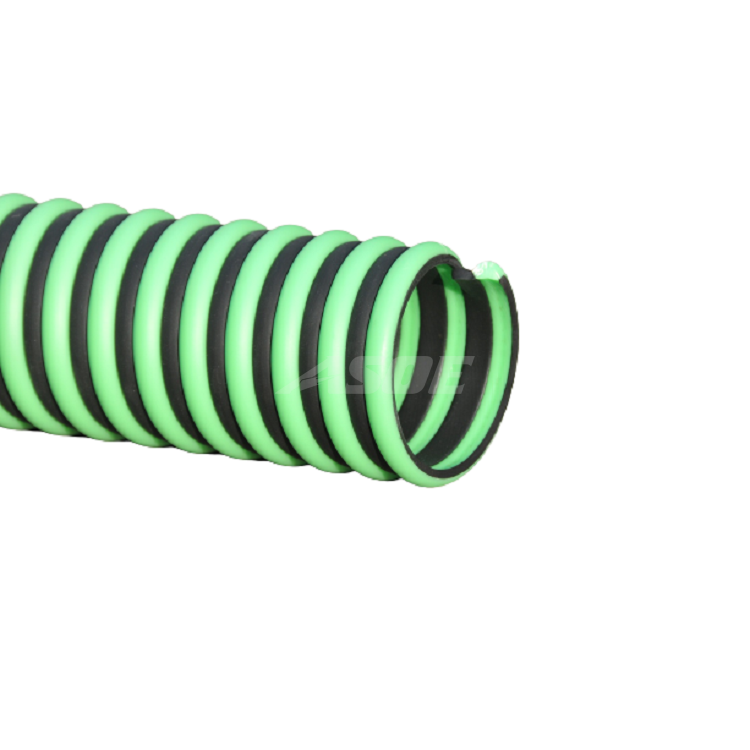

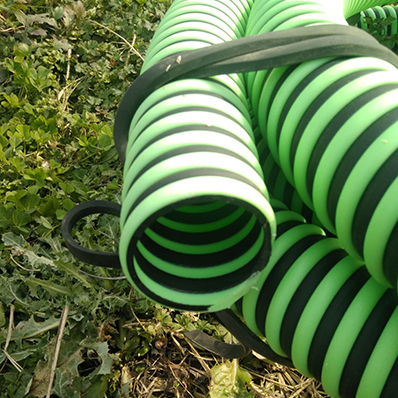

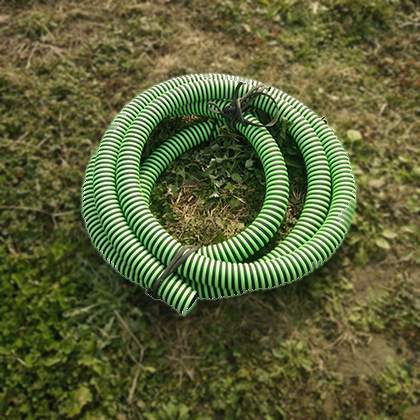

Geneflex™ EPDM/PE Suction Hose
-
Basic Information
-
Size: 1"-6"
Standard Color:+
(Other colors available)
- Length: Up to 30m, customized lengths available
Application:
· Vacuum Pumps Dewatering
· Frack Liquid Removal
· Marine Bilge Discharge
· Agriculture Liquid Fertilizers
· Liquid Manure Handling
· Irrigation
-
Structure
-
· High-grade Rubber Compounds
-
· Rigid Polyethylene Helix
-
-
Features
-
-
· Excellent Flexibility
-
· Cold-Resistance Raw Material
- Data Sheet
-
Code
Inch
ID
OD
Wall Thickness
Weight
Minimum Bend Radius
Working Pressure at 40℃
Vacuum Rating at
40℃mm
mm
mm
kg/m
m
MPa
kPa
E/P02501
1
25.4(+1.5, -0)
36.5 (+1.5, -0)
5.5~6.5
0.46
0.060
0.30
94.81
E/P04001
1-1/2
38.1 (+1.5, -0)
50.5 (+1.5, -0)
5.5~6.5
0.62
0.080
0.24
94.81
E/P04001
1-3/4
44.5 (+1.5, -0)
54.0 (+1.5, -0)
4.5~5.5
0.80
0.105
0.24
94.81
E/P05001
2
50.8 (+1.5, -0)
62.0 (+1.5, -0)
5.5~6.5
0.95
0.125
0.24
94.81
E/P08001
3
75.2 (+1.5, -0)
86.5 (+1.5, -0)
6.5~7.5
1.50
0.180
0.21
88.04
E/P10001
4
100.8 (+1.5, -0)
116.5 (+1.5, -0)
8.0~9.0
2.40
0.300
0.17
88.04
E/P15001
6
151.1 (+1.5, -0)
168.0 (+1.5, -0)
8.5~9.5
4.00
0.510
0.14
81.26

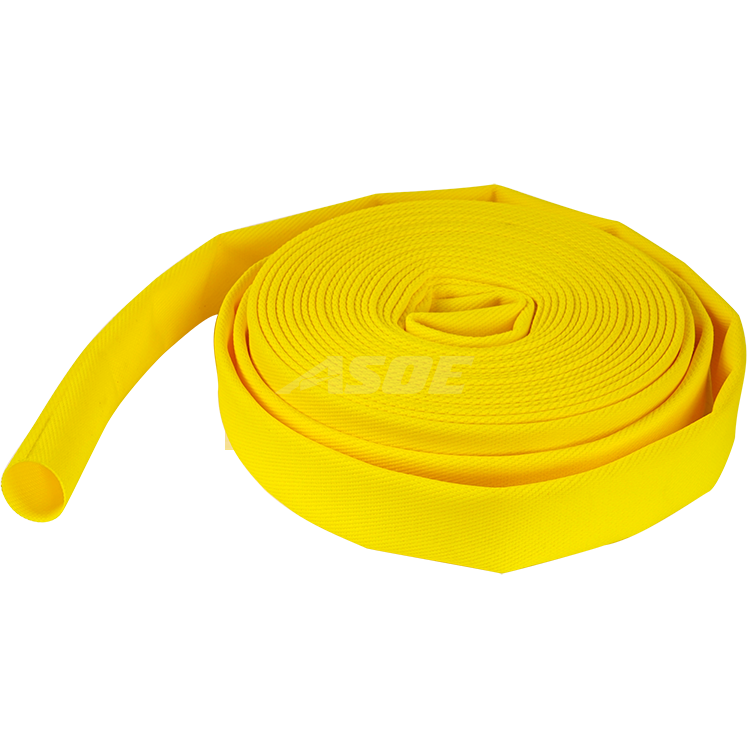

- Previous: Welline™ TPU Lay Flat Hose
